RES

For many years, MIKRONIKA has had an offer addressed to the sector of companies involved in the production of electricity from renewable energy sources (RES).

We offer solutions for both large manufacturers and smaller individual manufacturers.

The offer for RES is primarily SCADA software available in On Premises and SaaS formulas.

The functionalities of the system are adapted to the type and size of facilities and individual customer requirements. In combination with the appropriate MIKRONIKI devices, in addition to the standard scope of work, our software allows you to:

  • diagnostics of the operation of wind farm or PV elements
  • regulation of generation parameters
  • reporting and determining the parameters for assessing the efficiency and effectiveness of the work of a given RES

MIKRONIKA's offer also includes:

  • devices ensuring the acquisition of data from individual RES facilities and the performance of controls – our products meet the requirements in the field of conditions for connecting RES facilities to the power grid
  • services accompanying the implementation of RES projects: consulting, design, installation, implementation, operational support, training, warranty and service
  • software supporting energy transformation and energy storage - SYNDIS-OZE

SYNDIS-OZE software

For years, MIKRONIKA has been providing solutions in the field of automation devices and systems for the energy sector. These solutions are developed in line with its transformation. They are successfully used to manage facilities and systems, regardless of whether we are talking about installations that have been implemented for years or those that have increasingly appeared on the energy map in the last few or a dozen years, such as renewable energy sources (RES) or energy storage facilities (ES).

The company's flagship product - the SYNDIS system has been successfully implemented in installations covering renewable energy sources, such as wind farms or photovoltaic farms, for several years.

Due to the dynamic development of the RES industry, we have created a dedicated version of the SYNDIS system for this type of facilities.

SYNDIS-OZE, as this version of the SYNDIS system was named, is a comprehensive supervision system for renewable energy sources (including ES). SYNDIS-OZE is a coherent IT solution with a user interface in the form of a WWW application. It combines several existing SYNDISA modules (SCADA, energy billing, reports) with newly developed dedicated modules for RES.   [-]

The main functional modules are:

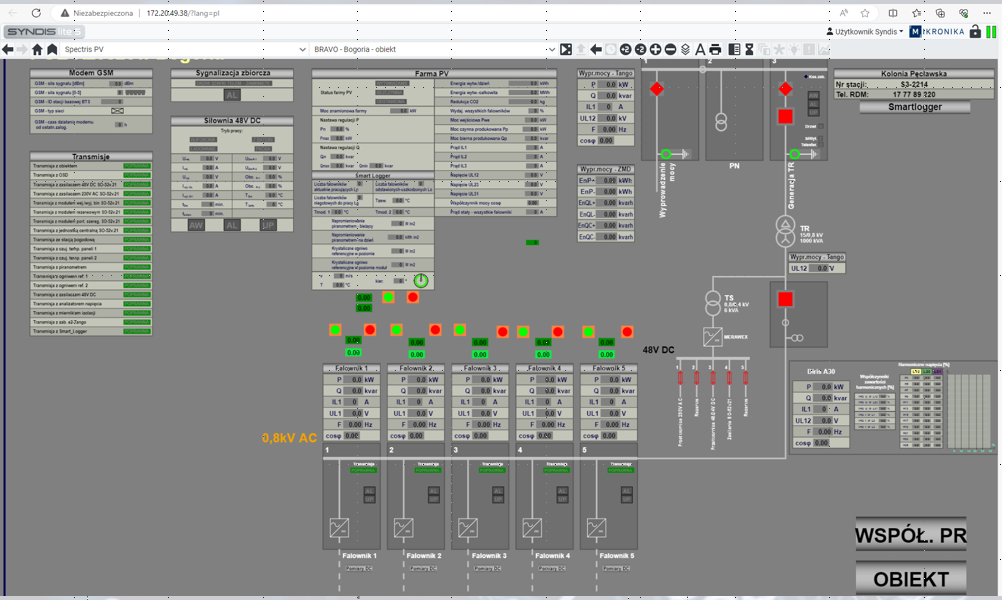

  • SCADA - SCADA module available via WWW
  • DASHBOARDS - presentation of data for management purposes
  • REPORTS - reporting module for presentation of measurement data collected in the system
  • EFFICIENCY - module calculating PR coefficients of the farm's energy efficiency
  • DECRETATIONS - event decrees for the purposes of calculating farm availability coefficients
  • FORECASTS - forecasting energy generation based on weather data
  • PRODUCTION PLAN - production planning and data exchange with OSD/OSP
  • MOBILE APP - mobile application for service services
  • NOTIFICATIONS - central management of notifications (SMS, email, push notifications in the mobile application)   [-]

The system integrates measurement data from all devices and installations installed on a photovoltaic (PV) farm:

  • telemechanics object controllers
  • digital protection and network parameter analyzers
  • electricity meters
  • smart loggers and inverters
  • weather stations
  • UPS power supplies
  • and others (e.g. protection system)   [-]

Functions of individual modules of the SYNDIS-OZE system

SCADA module

  • acquisition of measurement, binary, analog data
  • control
  • visualization
  • event log
  • alarms

Data presentation

  • customizable dashboards
  • presentation of key production indicators
  • event information

Report module

  • typical reports of recorded electrical and non-electrical parameters (U, I, P, Q, temp., solar radiation, ...)
  • reports of efficiency and effectiveness coefficients of farm and inverter operation
  • comparative reports object/object, object/t, temp., solar radiation
  • report template editor
  • automatic generation and distribution of reports (email, NAS)
  • presentation in tabular and graph form
  • export to files in xls, pdf format
  • PR (Performance Ratio) coefficients calculated according to predefined templates enabling calculations for a farm or inverter

Availability module

  • Event assignment manager
  • Event dictionary definition
  • Mapping physical events to system events
  • Defining rules and logic for automatically created events (trigger, logical conditions, execution)
  • Defining priorities
  • Defining manually generated events
  • Controlling event overlap and defining event boundaries

Mobile application

  • selected information about the state of objects in the form of infoboxes: (measurements, status/event, availability)
  • grouping and aggregation of data (tree structure)
  • information about events
  • notifications
  • control options object on/off with confirmation

SYNDIS-OZE is implemented based on two business models

  • CLASSIC - covering the sale of software licenses and implementation of the system on computer equipment located at the client's premises (physical or virtual servers)
  • CLOUD - in which the system is installed in the cloud and the client purchases a subscription service to use the system

The classic solution is dedicated to large operators of RES installations. We have implementations of this type with the owner and operator of several hundred PV farms located throughout Poland and with owners of PV farms that produce electricity for their own needs.

The SYNDIS-OZE cloud solution is intended for owners of a smaller number of PV farms or companies managing PV farms belonging to many different investors.

The SYNDIS-OZE system, in addition to PV farms, is also used to supervise other RES facilities such as wind farms, energy storage facilities or electric vehicle charging stations.

In combination with our field controllers, it is a comprehensive solution for the developing RES market.   [-]

PPC functionality - regulators

The MIKRONIKA PPC controller is designed to regulate and control inverter concentrators (FAC), inverters (inverters), devices and equipment in a photovoltaic power plant connected to the network in order to meet specific settings and change network parameters at the connection point. It can implement a complex process of regulating a large number of inverter concentrators and inverters included in the PPM (Energy Park Module) as a central controller.

The primary goal of the PPC controller is to coordinate the operation of devices included in the PPM and to supervise power parameters at the POI connection point. The controller fulfills these tasks by calculating and sending appropriate settings to executive devices. PPC implements the regulation process in such a way as to meet the requirements of network codes and other documents regulating the operation of a given facility.   []

The standardized communication protocols implemented in the controller allow for communication and data exchange with inverters from different manufacturers. They also allow for full cooperation with various superior systems.

The device allows for the implementation of additional, individual user requirements, thanks to the possibility of using the logic function module, which allows for the implementation of any logical functions and executive algorithms using programmable logic.

The operation, communication, stored data and configuration of the device are protected in accordance with safety principles, in accordance with current requirements. The device is designed to work in difficult ambient conditions, in locations with high dust concentration, high humidity and the presence of electromagnetic interference.

Depending on the requirements and needs, the PPC controller can be implemented on various hardware platforms, providing great flexibility in the implementation of control tasks. Thanks to this, the same control tasks can be implemented using different system solutions adapted to the customer's requirements.

Depending on the requirements, different controller modules, power supplies and mounting cassettes can be used. The controller can be additionally supplemented with appropriate input and output modules enabling the connection of additional external devices.   []



Example 1: using the SO-52v11 controller

Example 2: using the SO-52v12 controller

Proposed solutions:

Example 1 – SO-52v11 controller

  • PJC-865-C2 controller module (preferred) or other controllers of this type: PJC-865-42, PJC-865-A2
  • MP01-17-9/3-L8/M9 cassette
  • MZA-410 power supply

Example 2 – SO-52v12 controller

  • pCU-02-48 controller module
  • 16 cassette
  • 230V power supply

Example 3 – SO-52v21 controller

  • mCU-03-10 controller module
  • 16N cassette
  • 230V power supply

Example 4 – SO-54SR-901 controller

Example 5 – MSG-701 controller   []

Example 3: using the SO-52v21 controller

Example 4 and 5: using the SO-54SR-901 controller (left)
and MSG-701 (right)

The idea of ​​the regulator operation and logical construction

The diagram shown in the figure below shows the idea of ​​the PPC controller as a coordinator of the work of various devices constituting the PPM.

The PPC controller block consists of three independent function blocks:

  • input block
  • control block
  • output block

All blocks perform their functions independently of each other. Each of them provides the required data to the remaining controller blocks. A simplified logical diagram is shown in the figure below.   []

Logical design of the PPC controller

Functions performed by the controller

  • communication with OSD/ODP
  • communication with the investor
  • communication PPC controller/inverter concentrators (inverters)
  • communication with station devices
  • communication with weather station, temperature sensors and pyranometer (option)
  • communication with the measuring transducer at the object connection point (POI)
  • remote cessation of active power generation
  • remote reduction of active power generation (operation with power limitation)
  • active power regulation
  • reactive power regulation
  • power guard (monitoring of generated output power and not allowing the excess of produced active power to be fed to the grid)

PPC controller operating modes

  • off (regulation process is not performed)
  • on (realization of the regulation process with the photovoltaic farm in accordance with the set parameters)
  • simulation (real phenomena are replaced by their mathematical models)
  • by-pass (test operation mode, the controller reads data from measurement points but does not perform the regulation process)
  • emergency shutdown (emergency shutdown of the device, immediate shutdown of the photovoltaic farm bypassing the slow shutdown algorithm)   []

Logical design of the PPC controller

SO-52v11-PPC, SO-52v12-PPC and SO-52v21-PPC devices have a certificate of conformity issued by an accredited laboratory (as attachments at the end of the page).

Our PPCs are entered in the list of certified devices that have been positively verified by Distribution System Operators (DSOs), who are also members of PTPiREE, in terms of having appropriate equipment certificates in the process of connecting power generation modules to the power grid.

The list of certified devices is available in the link below (items 3997, 3998, 3999 on page 397)

https://ptpiree.pl/wp-content/uploads/2025/05/2025-05-13-Wykaz-urzadzen_1.2.pdf

The devices meet the following requirements:

  • Commission Regulation (EU) 2016/631 of 14 April 2016 establishing a network code on requirements for the connection of generating units to the grid (NC RfG code), in the process of connecting power generating modules to the electricity grid

and the document

  • “General application requirements resulting from Commission Regulation (EU) 2016/631 of 14 April 2016 establishing a network code on requirements for the connection of generating units to the grid (NC RfG)”.

The documents listed above are listed here (text in Polish) > https://ptpiree.pl/kodeksy-sieci/wykaz-certyfikatow/    []
