MSG-705/ab-x (router / serial ports server)

MSG-705-xx is a router with serial server functionality. It also acts as a modem, data concentrator and protocol converter. The device is intended for use in Smart Grid and Smart Metering systems for devices that do not autonomously support GPRS/UMTS/LTE standards. Communication with the router from the GSM network side is realized in TCP/IP or UDP network protocols. And from the field side, the MSG-705-xx has two Ethernet ports at its disposal. As standard, the router works with electronic electricity meters, digital security devices, reclosers, biogas controllers, wind farms or photovoltaic farms or other controllers / systems equipped with MSG-compatible communication interfaces.

MSG-705/ab-x router is produced in many executions. Its modular housing can comprise 4 up to 24 programmable serial transmission channels, and its compact models, MSG-705-08 and MSG-705-16 are equipped with 8 or 16 galvanically separated serial transmission channels, respectively. Each of the serial ports can be separately configured to operate as RS-232, RS-422 or RS-485.

In modular execution, the number of available serial ports depend on the number of deployed mST-xx-yy modules. The housing may comprise up to 6 modules in total. The types of modules to be mounted in modular type housing are as follows:

  • mCU-02-21 – central processing unit – 1 slot
  • mPS-11-91 – power supply unit – 1 slot
  • mST-25-01 – serial transmission channels (8 pcs) – 4 slots *)
  • mST-15-01 – serial transmission channels (4 pcs) – 4 slots *)

*) there may be up to 4 various mST-xx-yy serial transmission channel modules installed in MSG-705 of modular type

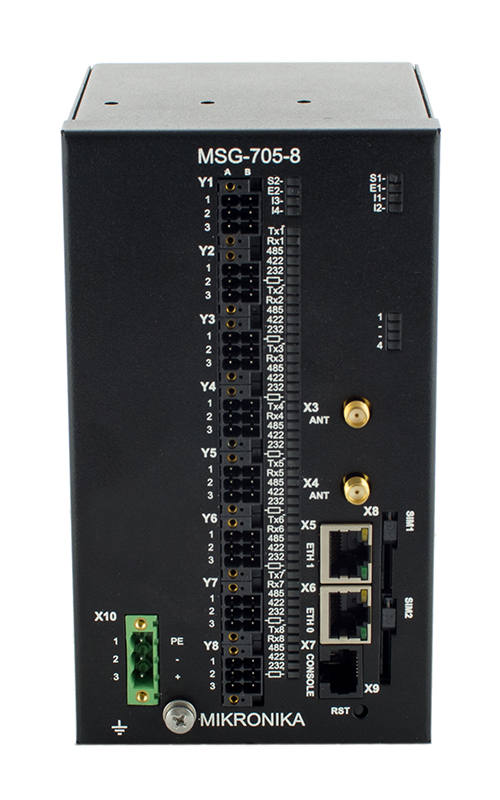

Examples of MSG-705/ab-x. In modular type housing – steel chassis (to the left), in compact housing (to the right), in modular type housing – alu chassis (in the back).

The router's power supply is galvanically separated from the communication interfaces and logic circuits. Multilateral galvanic isolation guarantees high operational reliability, resistance to damage caused by overvoltages and immunity to interference.

The integrated communication modem is equipped with two SIM card slots, making it possible to operate in networks of two different operators.

In the case of ensuring connection redundancy in a specific application, the Customer can connect a radio modem in dedicated standards, eg TETRA, DMR and a radio modem in dedicated ranges or open frequencies.

The MSG-705-xx router performs the authentication functions of the control commands in accordance with the IEC 62351-1 standard with the PN-EN 62351-3 extension. The encryption keys can be sent from the central server.   []

RS-ETH-003 (converter / serial ports server)

The RS-ETH-003 converter has a similar role to that of a serial port server, however it has two logical serial ports. More information about the device is available in the "Devices > Data transmission > Converters and separators".

STC-3xx (switch / serial port server)

Not recommended for apply in new solutions

STC-3xx are switches that act as a serial port server. More information about them is available in the product group
"Devices > Data transmission > Multiplexers and duplicating"
